INOVANCE MS1H1-10B30CB-A330Z Servo Motor

Product Overview

The INOVANCE MS1H1-10B30CB-A330Z is a compact AC servo motor from the MS1-R series, designed for high-precision motion control applications in industrial automation systems. With a rated power of 100W, compact mechanical design, and reliable feedback capability, this servo motor provides accurate positioning, smooth operation, and fast dynamic response for various automated equipment and precision machinery.

The MS1H1-10B30CB-A330Z is developed for applications where space efficiency, motion accuracy, and stable performance are important requirements. It is widely used in automation equipment, electronic manufacturing systems, assembly machines, inspection equipment, small robotic mechanisms, and other motion control applications requiring precise speed, torque, and position control.

As part of the INOVANCE MS1-R servo motor family, the MS1H1-10B30CB-A330Z combines advanced motor technology with compact construction to deliver reliable performance in modern manufacturing environments. The motor is designed to operate together with compatible INOVANCE servo drives and controllers, creating a complete motion control solution for machine builders and system integrators.

MS1-R Series Servo Motor Technology

The INOVANCE MS1-R series servo motors are designed for industrial automation applications that require high response speed, accurate positioning, and reliable operation. Compared with traditional motors, servo motors provide closed-loop control through encoder feedback, allowing the control system to continuously monitor and adjust motor operation according to actual working conditions.

The MS1H1-10B30CB-A330Z adopts a compact servo motor structure optimized for applications with limited installation space. Its small frame size allows equipment designers to reduce machine dimensions while maintaining precise motion performance. This makes it especially suitable for compact automation equipment, laboratory machines, semiconductor-related equipment, and precision assembly systems.

Through accurate feedback control, the motor can achieve stable rotation, smooth acceleration and deceleration, and improved repeatability. These characteristics are essential for automated production processes where consistent movement accuracy directly affects product quality and manufacturing efficiency.

Key Features and Advantages

Compact 100W Servo Motor Design

The MS1H1-10B30CB-A330Z features a 100W rated power design, making it suitable for light-duty and precision motion applications. The compact power range provides an excellent balance between performance and size, allowing engineers to integrate servo control into smaller mechanical systems without unnecessary space requirements.

Small servo motors are widely used in applications such as precision feeders, inspection mechanisms, small conveyors, electronic assembly equipment, and automated positioning platforms. The compact design of this motor helps reduce overall machine size while maintaining the advantages of servo-based motion control.

High Precision Motion Control

Servo motors are widely recognized for their ability to provide accurate positioning and repeatable movement. The INOVANCE MS1H1-10B30CB-A330Z uses feedback-based control technology to achieve precise control of speed, torque, and position.

This precision makes the motor suitable for equipment requiring accurate mechanical movement, including automated assembly systems, testing machines, dispensing equipment, and robotic mechanisms. The motor can respond quickly to control commands, helping improve machine productivity and operational stability.

Fast Dynamic Response

Modern automation equipment often requires frequent start-stop cycles, rapid positioning, and smooth transitions between different operating speeds. The MS1H1-10B30CB-A330Z is designed to provide fast response characteristics, enabling efficient operation in dynamic production environments.

The motor's responsive control performance allows automation systems to achieve shorter cycle times while maintaining positioning accuracy. This is especially valuable in manufacturing applications where high throughput and consistent quality are required.

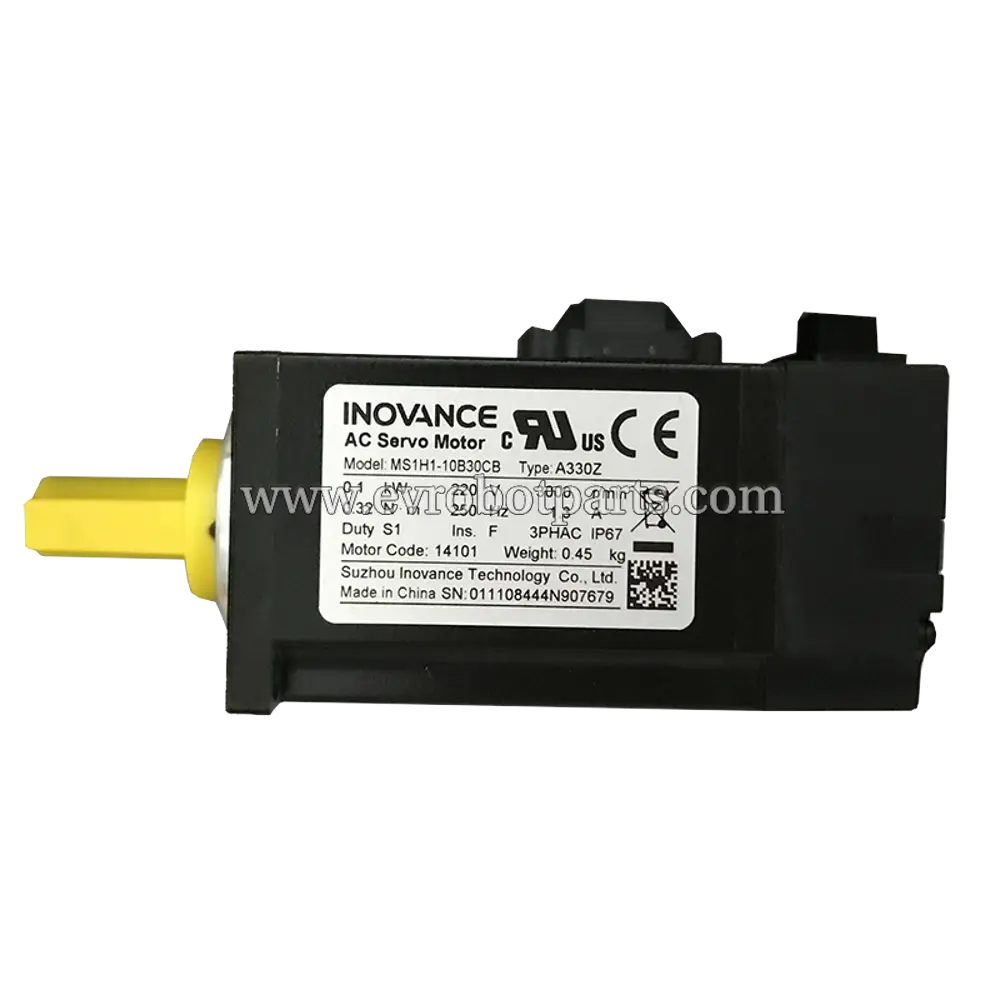

Technical Characteristics

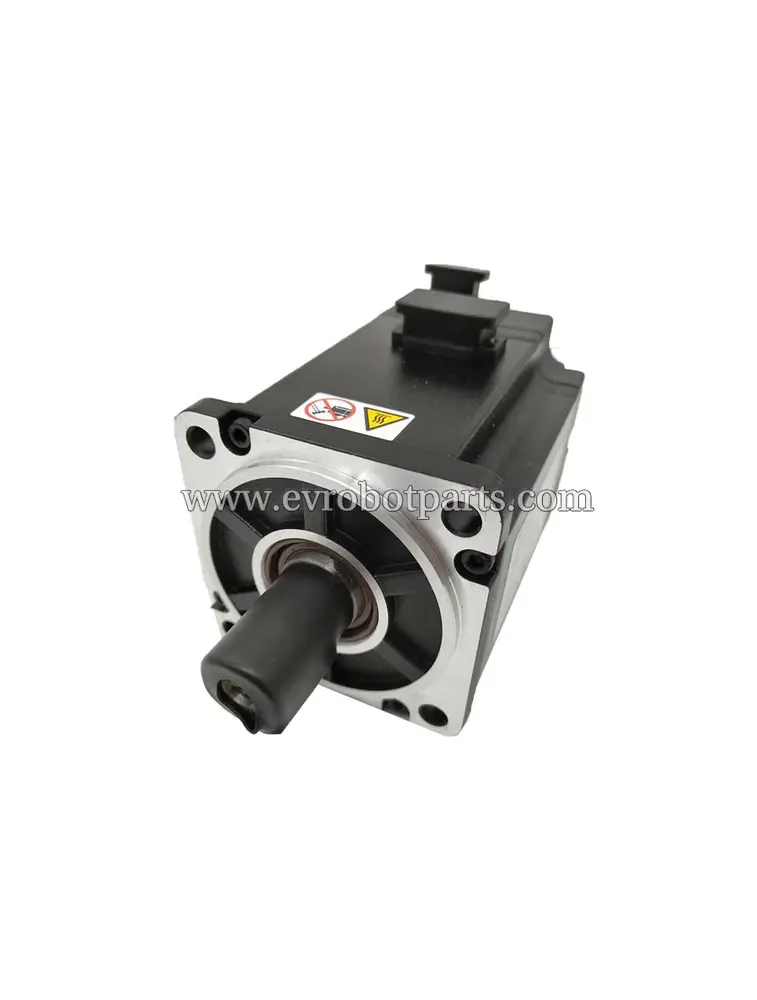

The INOVANCE MS1H1-10B30CB-A330Z is a 220V AC servo motor designed for integration with industrial motion control systems. Its compact flange design and lightweight structure make it suitable for installation in machines where space is limited.

The motor provides stable operation through accurate feedback control and is compatible with INOVANCE servo drive systems. By combining the motor with a suitable servo drive, users can configure advanced motion control functions including position control, speed control, and torque control.

• Rated Power: 100W
• Motor Type: AC Servo Motor
• Series: INOVANCE MS1-R Series
• Rated Voltage: 220V AC
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Feedback System: Encoder Feedback
• Application: Precision Motion Control Systems

Industrial Automation Applications

The INOVANCE MS1H1-10B30CB-A330Z is widely used in industrial automation equipment where precise and reliable movement is required. Servo motors play an important role in automated machinery by converting electrical control signals into accurate mechanical motion.

Typical industrial automation applications include automated assembly lines, material handling equipment, testing systems, packaging machines, and precision positioning platforms. The motor's compact size makes it particularly suitable for machines that require multiple controlled axes within a limited installation area.

In automated production environments, servo motors help improve efficiency by providing accurate movement control and reducing mechanical errors. The MS1H1-10B30CB-A330Z can support manufacturers in developing flexible and reliable automation solutions for different production requirements.

Robotics and Motion Control Applications

The MS1H1-10B30CB-A330Z can also be applied in robotic and intelligent manufacturing systems. Although it is not a dedicated robot joint actuator, its compact size and precise control characteristics make it suitable for auxiliary robotic mechanisms, small robotic platforms, and automated positioning devices.

In robotic applications, accurate motion control is essential for achieving repeatable operation. Servo motors provide advantages over conventional motors because they can precisely control movement based on feedback information from the encoder system.

Possible robotic applications include small handling systems, pick-and-place mechanisms, automated inspection devices, and laboratory automation equipment. The motor provides the precise movement capability required for these applications while maintaining a compact installation footprint.

Applications in Electronic Manufacturing Equipment

Electronic manufacturing equipment often requires extremely accurate positioning due to the small size of components and strict production requirements. The INOVANCE MS1H1-10B30CB-A330Z servo motor can be used in various electronic production machines that require smooth and repeatable movement.

Applications may include PCB assembly equipment, component placement systems, testing equipment, dispensing machines, and precision alignment mechanisms. The servo motor's ability to provide controlled acceleration, positioning accuracy, and stable operation helps improve production consistency.

Integration with Servo Drives and Control Systems

The MS1H1-10B30CB-A330Z is designed to operate as part of a complete servo control system. A typical motion control system includes the servo motor, servo drive, controller, mechanical transmission components, and communication interface.

When selecting and configuring a servo system, engineers should consider factors such as load requirements, operating speed, acceleration and deceleration cycles, mechanical structure, and environmental conditions. Proper matching between the motor and servo drive ensures optimal performance and system reliability.

INOVANCE servo solutions are commonly used in industrial automation because they provide integrated control capabilities and flexible configuration options. The MS1H1-10B30CB-A330Z can be incorporated into various automation platforms requiring precise and efficient motion control.

Maintenance and Reliability

The INOVANCE MS1H1-10B30CB-A330Z is designed for reliable operation in industrial environments. Proper installation, parameter configuration, and regular inspection can help maintain long-term performance.

Recommended maintenance practices include checking motor mounting conditions, inspecting cables and connectors, monitoring operating temperature, and ensuring that the motor operates within specified environmental conditions. Correct servo tuning can also improve system stability and reduce unnecessary vibration.

With appropriate system design and maintenance procedures, the MS1H1-10B30CB-A330Z can provide stable performance for long-term industrial automation applications.

Industrial Value and Application Benefits

The INOVANCE MS1H1-10B30CB-A330Z provides an efficient motion solution for manufacturers and engineers who require compact, accurate, and reliable servo control. Its combination of small size, precise feedback control, and compatibility with industrial automation systems makes it suitable for a wide range of applications.

From compact automation equipment to precision manufacturing systems, this servo motor helps improve machine performance, production efficiency, and motion accuracy. It represents a practical choice for engineers developing modern automation solutions requiring reliable servo technology.
