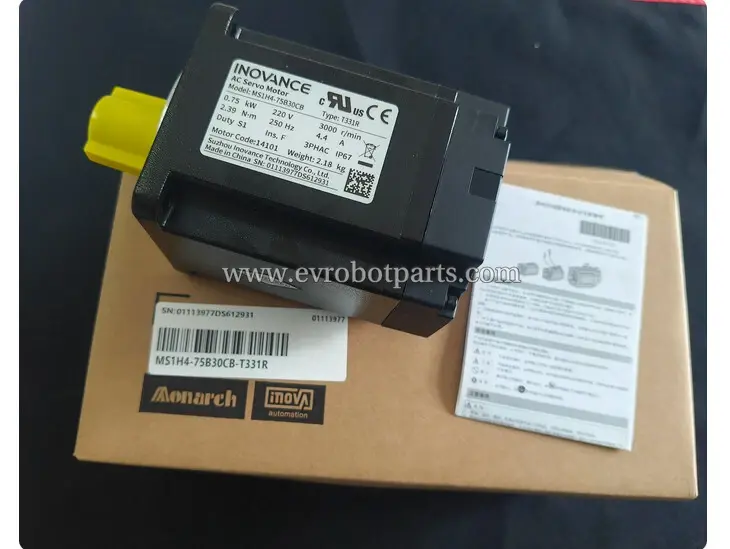

INOVANCE MS1H4-75B30CB-T331R Servo Motor
The INOVANCE MS1H4-75B30CB-T331R is a 750W AC servo motor with 18-bit high-resolution encoder, designed for precision motion control in industrial automation, CNC machinery, and robotic systems requiring high torque and fast response.
Key Specifications
Rated Power: 750W (0.75kW), Rated Voltage: 220V AC
Encoder: 18-bit High Resolution Encoder
Frame Size: 80mm Flange
Rated Torque: 2.39 Nm, Peak Torque: 8.36 Nm
Rated Speed: 3000 RPM, Maximum Speed: 6000 RPM
Rated Current: 4.8A, Peak Current: 16.9A
Detailed Description
The INOVANCE MS1H4-75B30CB-T331R is a high-performance AC servo motor from the MS1-R series, designed for precision motion control applications in industrial automation systems. With a rated power of 750W, 220V AC voltage rating, and high-resolution 18-bit encoder feedback, this servo motor provides accurate positioning, fast response, and reliable operation for demanding automation environments.
The MS1H4-75B30CB-T331R is widely used in CNC machines, industrial robots, packaging equipment, semiconductor manufacturing systems, automated assembly lines, and other precision motion control applications. It is designed to work with INOVANCE servo drives and controllers to provide complete motion solutions.
Key Features
- 750W Rated Power: Provides sufficient output torque for medium-duty industrial automation applications.
- 18-bit High Resolution Encoder: Enables accurate position feedback, improved control precision, and smooth motor operation.
- High Speed Performance: Supports rated speed of 3000 RPM and maximum speed up to 6000 RPM for fast-response applications.
- Compact 80mm Flange Design: Suitable for equipment with limited installation space while maintaining excellent performance.
- Industrial Grade Reliability: Designed for continuous operation in factory automation environments.
Detail Specifications
| Brand | INOVANCE |
| Series | MS1-R Servo Motor Series |
| Model | MS1H4-75B30CB-T331R |
| Product Type | AC Servo Motor |
| Rated Power | 750W (0.75kW) |
| Rated Voltage | 220V AC |
| Encoder | 18-bit High Resolution Encoder |
| Frame Size | 80mm Flange |
| Rated Torque | 2.39 Nm |
| Peak Torque | 8.36 Nm |
| Rated Speed | 3000 RPM |
| Maximum Speed | 6000 RPM |
| Rated Current | 4.8A |
| Peak Current | 16.9A |
| Protection | Oil Seal Protection |
| Applications | Industrial Automation, CNC Machines, Robotics, Packaging Machinery, Motion Control Systems |
Technical Advantages
Compared with traditional induction motors and stepper motors, AC servo motors provide higher positioning accuracy, faster dynamic response, and better performance under variable loads. The INOVANCE MS1H4-75B30CB-T331R integrates advanced motor design and encoder feedback technology to achieve precise speed, torque, and position control.
The 18-bit encoder continuously provides accurate rotor position information to the servo drive, allowing the control system to compensate for load changes and maintain stable operation. This makes the motor suitable for applications requiring frequent acceleration, deceleration, and precise positioning.
Applications
The INOVANCE MS1H4-75B30CB-T331R servo motor is commonly used in the following industries:
- Industrial automation equipment
- CNC machining machines
- Robotic systems and automation robots
- Packaging and filling machinery
- Electronic assembly equipment
- Semiconductor manufacturing equipment
- Precision positioning systems
- Automotive manufacturing production lines
- EV battery manufacturing equipment
Automotive Manufacturing Applications
Although the MS1H4-75B30CB-T331R is not an automotive component installed directly inside vehicles, it is widely applicable in automotive manufacturing equipment. Modern automotive and electric vehicle factories use servo motors for automated assembly, material handling, inspection systems, welding equipment, and battery production lines.
The high precision and fast response characteristics of this servo motor make it suitable for automated processes where repeatability and production efficiency are critical.
Robot and Automation Applications
Servo motors are essential components in industrial robotics and intelligent manufacturing systems. The INOVANCE MS1H4-75B30CB-T331R can be used as a motion actuator for robotic mechanisms, auxiliary robot axes, automated handling systems, and precision mechanical platforms.
Its compact design and high-resolution feedback system make it suitable for robotic applications requiring accurate movement control and reliable operation.
Compatibility and Integration

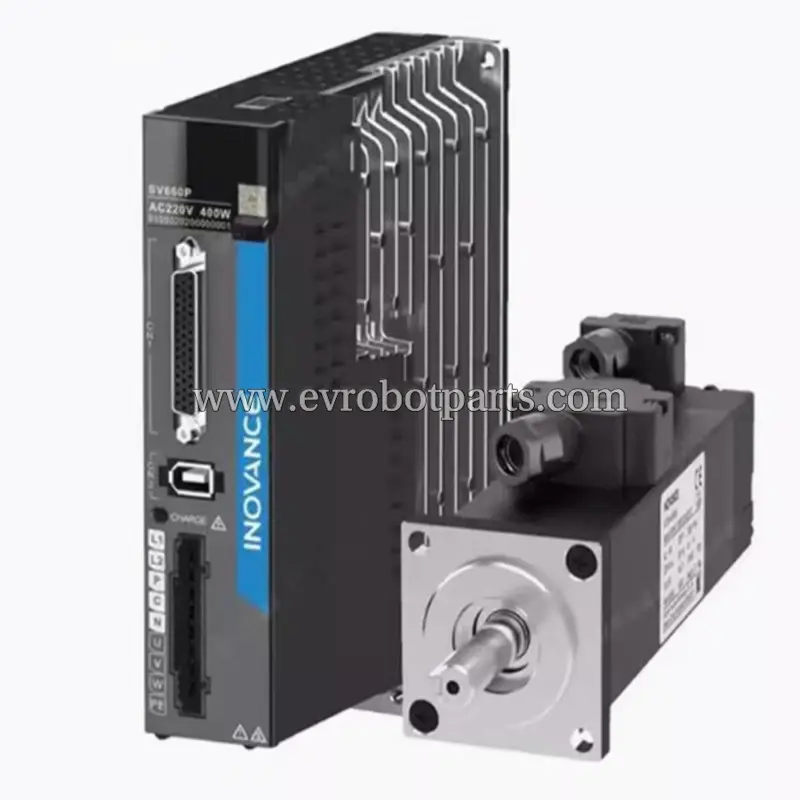

The MS1H4-75B30CB-T331R is designed for integration with compatible INOVANCE servo drives and motion controllers. Proper selection of servo drive parameters, mechanical load characteristics, and control settings is essential to achieve optimal performance.
When selecting a servo motor solution, engineers should consider:
- Load inertia ratio
- Required torque and speed
- Operating cycle and duty requirements
- Installation environment
- Communication and control requirements
Maintenance and Reliability
The INOVANCE MS1H4-75B30CB-T331R requires minimal maintenance when operated under recommended conditions. Regular inspection of motor mounting, cable connections, operating temperature, and mechanical components helps maintain long-term reliability.
Correct servo tuning and parameter configuration can further improve system stability, reduce vibration, and extend equipment service life.
Why Choose INOVANCE MS1H4-75B30CB-T331R?
- Reliable MS1-R series servo motor platform
- High precision 18-bit encoder feedback
- Compact and efficient 750W motor design
- Suitable for industrial automation and robotics applications
- Compatible with modern motion control systems
- Ideal for CNC, robotics, and intelligent manufacturing equipment
Frequently Asked Questions
What INOVANCE servo drive pairs with this motor?
The INOVANCE IS620N or IS620E series servo drive in the 750W power class is the recommended pairing. Use the IS620NE-08T for 220V input with EtherCAT communication support.
What is the encoder type and resolution?
This motor features an 18-bit absolute encoder (262144 counts/revolution), providing high-resolution position feedback for precision positioning and smooth low-speed operation.
Can this motor replace Yaskawa or Panasonic servo motors?
Yes, with proper drive configuration and mechanical adapter, this INOVANCE servo motor can replace equivalent 750W class motors from Yaskawa (SGM7J) or Panasonic (MINAS A6) in most applications.
What is the recommended operating environment?
Operating temperature: 0°C to 40°C. Storage: -20°C to 60°C. Humidity: ≤90% RH (non-condensing). Protection class: IP65 for standard industrial environments.
Do you provide mounting flange dimensions?
Yes, the 80mm flange mounting dimensions follow IEC standard. Detailed dimension drawings with shaft, keyway, and flange bolt patterns are available in the product datasheet.
