YGC1033A-EV-P2RN/I is the non-interlock receptacle option in the Yonggui YGC1033 family. Its ordering number is 112022001074. The two-pin interface serves vehicle battery and electronic-control connections and uses a black PA66-GF30 receptacle housing. Retain the N suffix when requesting this part: the interlock-equipped P2R receptacle has a different number. The N ordering row shows no mistake-proof key, even though /I is retained in the model name.
Yonggui YGC1033A-EV-P2RN/I Non-Interlock HV Receptacle
Brand
Yonggui
Model
YGC1033A-EV-P2RN/I
Part / SKU
112022001074
Product Type
High Voltage EV Connector
Tags
Non-Interlock Receptacle
EV Battery Hardware
YGC1033 Connector
Two-Pin Power Interface
Vehicle Control Components
Product Summary
The Yonggui YGC1033A-EV-P2RN/I is a two-pin high-voltage receptacle supplied under part number 112022001074. This N version has no interlock and is used in the specified connector arrangements for new-energy vehicle battery and electronic control systems. Select it with the required mating interface and cable assembly, checking the ordering-table keying note and the P2RN outline drawing before purchase.
Part-number focused
Technical information
International sourcing
TECHNICAL DATA
Specifications
Key technical information for product identification and purchasing review.
| HVIL | Without interlock (N variant) |
|---|---|
| Model | YGC1033A-EV-P2RN/I |
| Keying note | Ordering table shows no mistake-proof key; /I is retained in the model designation |
| Flammability | UL94 V-0 |
| Mating cycles | 50 |
| Connector type | Two-pin high-voltage receptacle |
| Mated protection | IP67, IP6K9K, IP68 (1m water depth, 24h), correctly mated and locked |
| Relative humidity | ≤90% at 40°C |
| Withstand voltage | 3000V power; 1000V signal; 50Hz AC; leakage ≤5mA |
| Receptacle housing | Black PA66-GF30 |
| Operating temperature | -40°C to +125°C |
| Rated voltage (series) | 1000V power; 24V signal |
| Signal current (series) | 3A with 0.5 or 0.75mm² unshielded cable |
| Manufacturer part number | 112022001074 |
| Unmated touch protection | IPXXB |
| Receptacle with optional dust cover | IP3X |
| Power current (series, cable dependent) | 150A with 35mm² shielded cable; 200A with 50mm² shielded cable |
Specifications may vary by exact revision, production batch or manufacturer documentation. Confirm the required specification before ordering.
PRODUCT OVERVIEW
Product Overview
A comprehensive overview of this product and its capabilities.
KEY FEATURES
Key Features
Notable features and advantages of this product.
01
Part 112022001074 identifies the P2RN receptacle assembly
02
N suffix denotes the version without interlock
03
Two-pin interface in the YGC1033 high-voltage family
04
Black reinforced-polyamide PA66-GF30 receptacle shell
05
Series power circuit rated 1000V; current depends on cable selection
06

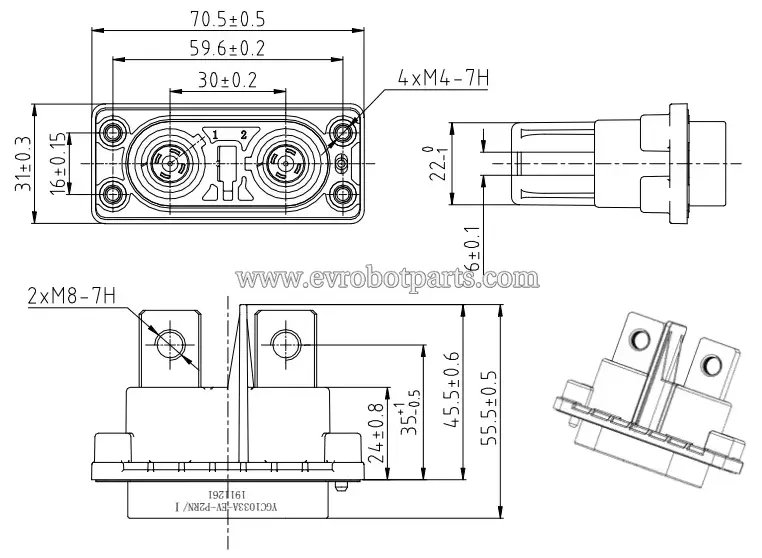

Documented outline drawing supports mounting and interface checks
APPLICATIONS
Applications
Typical use cases and application scenarios for this product.
Battery power connections in new-energy vehicles
Electronic control assemblies using the specified N-version interface
High-voltage vehicle connector assemblies matched to the required counterpart
ORDERING
Ordering Information
Important details for placing an order for this product.
| model | YGC1033A-EV-P2RN/I |
|---|---|
| keying | No mistake-proof key is indicated in the N-model ordering row |
| version | Receptacle without interlock; confirm mating geometry before ordering |
| quotation | Contact supplier for price, stock, order quantity and lead time |
| accessories | Receptacle dust cover 114069804815 optional; confirm other supplied components |
| part_number | 112022001074 |
TECHNICAL RESOURCES
Datasheets & Product Documents
Available technical documents for product evaluation.
BUYER QUESTIONS
Frequently Asked Questions
Answers to common purchasing questions about this product.
Specify YGC1033A-EV-P2RN/I and manufacturer number 112022001074. Keep the N suffix to distinguish it from the P2R version.
No. P2RN is the no-interlock version. The P2R/I entry uses a different ordering number, so confirm the configuration required by the vehicle system.
Review the N-model ordering row, actual counterpart and P2RN drawing. The table indicates no mistake-proof key for this group; /I alone should not be treated as proof of key-I geometry.
The published series values depend on the complete cable and mating arrangement: 150A with 35mm² shielded cable and 200A with 50mm² shielded cable. Verify the intended system configuration.
BEFORE YOU ORDER
What Should Be Confirmed?
For technical components, the exact part number is only one part of the purchasing decision.
01
Exact Part Number
Confirm the complete manufacturer model or ordering code.
02
Product Condition
Confirm new, unused, refurbished or other requested condition.
03
Quantity & Lead Time
Availability can depend on quantity and current supply conditions.
04
Documents
Request datasheets, test reports, certificates or photos when required.
