The Yonggui YGC1033A-EV-P2R/I is the key-I receptacle assembly in the YGC1033 high-voltage connector family. Manufacturer part number 112022001075 identifies this two-pin interface for new-energy vehicle battery and electronic control systems. It uses a black PA66-GF30 receptacle housing. Series data specifies 1000V power and 24V signal circuits; current capacity depends on the matched cable assembly. Environmental protection ratings apply to the correctly mated and locked connector system.

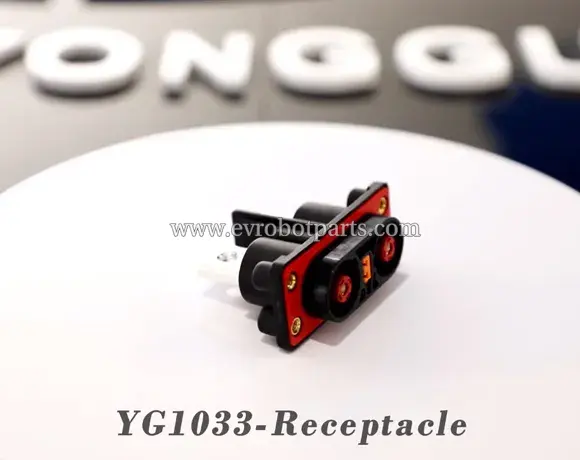

Yonggui YGC1033A-EV-P2R/I 2-Pin HV Receptacle
Brand
Yonggui
Model
YGC1033A-EV-P2R/I
Part / SKU
112022001075
Product Type
High Voltage EV Connector
Tags
High Voltage Connector
YGC1033
EV Battery Connector
2-Pin Receptacle
HVIL
Product Summary
The Yonggui YGC1033A-EV-P2R/I is a two-pin high-voltage receptacle for electric-vehicle battery and electronic control systems. Identified by part number 112022001075, it provides the fixed mating interface for compatible YGC1033 plugs. This key-I version includes high-voltage interlock functionality and belongs to a shielded connector family rated for 1000V power circuits and demanding vehicle environments.
Part-number focused
Technical information
International sourcing
TECHNICAL DATA
Specifications
Key technical information for product identification and purchasing review.
| HVIL | With interlock; N-suffix receptacle is a different variant |
|---|---|
| Model | YGC1033A-EV-P2R/I |
| Storage | 5°C to 30°C; relative humidity ≤60% |
| Flammability | UL94 V-0 |
| Key position | I |
| Mating cycles | 50 |
| Connector type | Two-pin high-voltage receptacle assembly |
| Relative humidity | ≤90% at 40°C |
| Withstand voltage | 3000V power; 1000V signal; 50Hz AC; leakage ≤5mA |
| Receptacle housing | PA66-GF30, black |
| Operating temperature | -40°C to +125°C |
| Rated voltage (series) | 1000V power; 24V signal |
| Signal current (series) | 3A with 0.5 or 0.75mm² unshielded cable |
| Manufacturer part number | 112022001075 |
| Unmated touch protection | IPXXB |
| With optional receptacle dust cover | IP3X |
| Protection (correctly mated and locked) | IP67, IP6K9K, IP68 (1m water depth, 24h) |
| Rated current (series, cable dependent) | 150A with 35mm² shielded cable; 200A with 50mm² shielded cable |
Specifications may vary by exact revision, production batch or manufacturer documentation. Confirm the required specification before ordering.
PRODUCT OVERVIEW
Product Overview
A comprehensive overview of this product and its capabilities.
KEY FEATURES
Key Features
Notable features and advantages of this product.
01
Two-pin receptacle assembly, part number 112022001075
02
Key position I with high-voltage interlock (HVIL)
03
Black PA66-GF30 receptacle housing
04
Series power rating: 1000V; signal rating: 24V
05
Mated system: IP67, IP6K9K and IP68 (1m, 24h)
06
Operating temperature: -40°C to +125°C
APPLICATIONS
Applications
Typical use cases and application scenarios for this product.
New-energy vehicle battery power systems
Electric-vehicle electronic control systems
High-voltage power connections using compatible YGC1033 plugs
ORDERING
Ordering Information
Important details for placing an order for this product.
| model | YGC1033A-EV-P2R/I |
|---|---|
| assembly | Two-pin receptacle, key I, with HVIL |
| accessories | Select plug contacts, seals and backshell components for the specified cable; purchased separately |
| mating_plugs | YGC1033A-EV-S2P/I (180°); YGC1033A-EV-S2PW/I (120°); YGC1033D-EV-S2P/I (90°) |
| commercial_terms | Request quotation for price, availability, minimum order quantity and lead time |
| optional_dust_cover | 114069804815; ordered separately |
| manufacturer_part_number | 112022001075 |
TECHNICAL RESOURCES
Datasheets & Product Documents
Available technical documents for product evaluation.
BUYER QUESTIONS
Frequently Asked Questions
Answers to common purchasing questions about this product.
YGC1033A-EV-P2R/I is the two-pin, key-I receptacle assembly, manufacturer part number 112022001075. Plugs and cable-specific accessories are selected separately.
No. The series specifies 150A with 35mm² shielded cable and 200A with 50mm² shielded cable. Confirm the complete mating and cable configuration.
IP67, IP6K9K and IP68 (1m, 24h) apply to the correctly mated and locked system. With only the optional receptacle dust cover fitted, the rating is IP3X.
The ordering table lists YGC1033A-EV-S2P/I (180°), YGC1033A-EV-S2PW/I (120°) and YGC1033D-EV-S2P/I (90°). Verify key position and configuration.
BEFORE YOU ORDER
What Should Be Confirmed?
For technical components, the exact part number is only one part of the purchasing decision.
01
Exact Part Number
Confirm the complete manufacturer model or ordering code.
02
Product Condition
Confirm new, unused, refurbished or other requested condition.
03
Quantity & Lead Time
Availability can depend on quantity and current supply conditions.
04
Documents
Request datasheets, test reports, certificates or photos when required.
TRANSPARENCY
Product Information Source
We distinguish manufacturer information from sourcing and quotation information.
REFERENCE SOURCE
Zhejiang Yonggui Electric Equipment Co., Ltd.
Reference type: Official Manufacturer. This reference helps buyers compare the product information with available manufacturer or source documentation.
Reference checked: October 22, 2026
Important: EVRobotParts is a sourcing-focused supplier. Unless explicitly stated otherwise, a product page should not be interpreted as a statement that EVRobotParts is the manufacturer, brand owner or certification holder.
