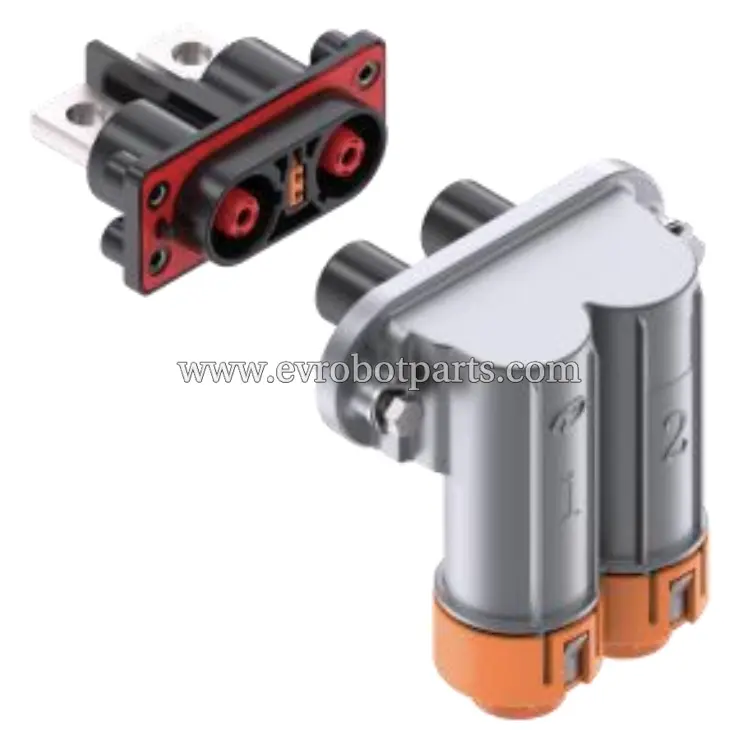

Yonggui YGC1033D-EV-S2P/I High Voltage EV Plug Connector

Yonggui YGC1033D-EV-S2P/I High Voltage EV Plug Connector

Brand Yonggui

Model N/A

Part / SKU 111000404645

Product Type High Voltage EV Connector

Tags Electric Vehicle EV Connector High Voltage Connector Yonggui YGC1033

Product Summary

The YGC1033D-EV-S2P/I is a 90-degree right-angle high voltage plug connector manufactured by Yonggui Electric for new energy vehicle applications. It is a complete plug assembly rated at 1000V with 200A current using 50mm2 unshielded cable, used for connecting battery packs, electronic control units, and power distribution systems in electric vehicles where space-saving right-angle cable routing is required.

Part-number focused

Technical information

International sourcing

TECHNICAL DATA

Specifications

Key technical information for product identification and purchasing review.

Technical specifications for Yonggui YGC1033D-EV-S2P/I High Voltage EV Plug Connector.
HVIL	Optional
IP Rating	IP67, IP6K9K and IP68 (1m water depth, 24h, mating state); IP3X with dust cover
Key Position	I
Plug Housing	ADC12 aluminum alloy, salt spray 96h (240h, 480h, 960h options)
Rated Current	200A @ 50mm2 unshielded cable
Rated Voltage	1000V (power), 24V (signal)
Mechanical Life	50 mating cycles
Compatible Cable	50mm2 unshielded cable, 13.2mm outer diameter (0/-0.8mm tolerance)
Relative Humidity	90% or less at 40C
Withstand Voltage	3000V (power), 1000V (signal); 50Hz AC; leakage current less than 5mA
Insulation Resistance	5000MOhm or higher (power), 1000MOhm or higher (signal)
Operating Temperature	-40C to +125C
Connector Construction	Dual-pin connector, 90-degree right-angle plug assembly
Flame Retardant Rating	UL94 V-0

Specifications may vary by exact revision, production batch or manufacturer documentation. Confirm the required specification before ordering.

PRODUCT OVERVIEW

Product Overview

A comprehensive overview of this product and its capabilities.

The YGC1033D-EV-S2P/I is a 90-degree right-angle high voltage plug connector manufactured by Yonggui Electric as part of the YGC1033 series dual-pin connectors for new energy vehicles. It is supplied as a complete plug assembly with all components included, requiring only cable selection before use.

The connector is rated at 1000V (power) and 24V (signal) with 200A current capacity when using 50mm2 unshielded cable (13.2mm outer diameter). The plug housing is made of ADC12 aluminum alloy with passivation process, providing 360-degree shielding and high salt spray resistance.

Featuring mistake-proof key position I, the connector achieves IP67, IP6K9K and IP68 protection when mated and locked, with an operating temperature range of -40C to +125C. The right-angle 90-degree cable exit design makes it the most space-saving option in the YGC1033 series.

KEY FEATURES

Key Features

Notable features and advantages of this product.

Complete 90-degree right-angle plug assembly with all components included

Rated voltage 1000V (power) and 24V (signal)

200A current capacity with 50mm2 unshielded cable

IP67, IP6K9K and IP68 protection when mated and locked

ADC12 aluminum alloy housing with 360-degree shielding

Salt spray resistance 96h with 240h/480h/960h options

Mistake-proof key position I design

Operating temperature range -40C to +125C

APPLICATIONS

Applications

Typical use cases and application scenarios for this product.

EV battery power systems Vehicle electronic control systems High-voltage power distribution Space-saving right-angle cable routing installations New energy vehicle power systems

ORDERING

Ordering Information

Important details for placing an order for this product.

sku	111000404645
model	YGC1033D-EV-S2P/I
lead_time	Contact supplier
key_position	I
supply_format	Complete plug assembly (all components included)
compatible_cable	50mm2 unshielded cable (13.2mm outer diameter)
minimum_order_quantity	Contact supplier

TECHNICAL RESOURCES

Datasheets & Product Documents

Available technical documents for product evaluation.

YGC1033 Series Electrical Connectors Technical SpecificationTechnical document

View Document

BUYER QUESTIONS

Frequently Asked Questions

Answers to common purchasing questions about this product.

The YGC1033D-EV-S2P/I is a 90-degree right-angle high voltage plug connector from the Yonggui YGC1033 series. It is supplied as a complete plug assembly with all components included, requiring only cable selection. The manufacturer part number is 111000404645.

This connector accepts 50mm2 unshielded cable with an outer diameter of 13.2mm (0/-0.8mm tolerance). The rated current is 200A with this cable configuration.

The YGC1033D features a 90-degree right-angle cable exit and is supplied as a complete plug assembly with all components included, while YGC1033A plugs have 180-degree or 120-degree exits and require separate accessory purchases based on cable specifications. The D-type is the most space-saving option in the series.

The connector meets IP67, IP6K9K, and IP68 ratings (1m water depth for 24 hours) in the mated and locked state. Before mating, plugs and receptacles meet IPXXB, and the receptacle with dust cover achieves IP3X.

This connector uses mistake-proof key position I, which prevents incorrect mating with incompatible connector types. Key positions II and III are also available in the YGC1033 series.

The operating temperature range is -40C to +125C with relative humidity up to 90% at 40C, suitable for demanding new energy vehicle environments.
