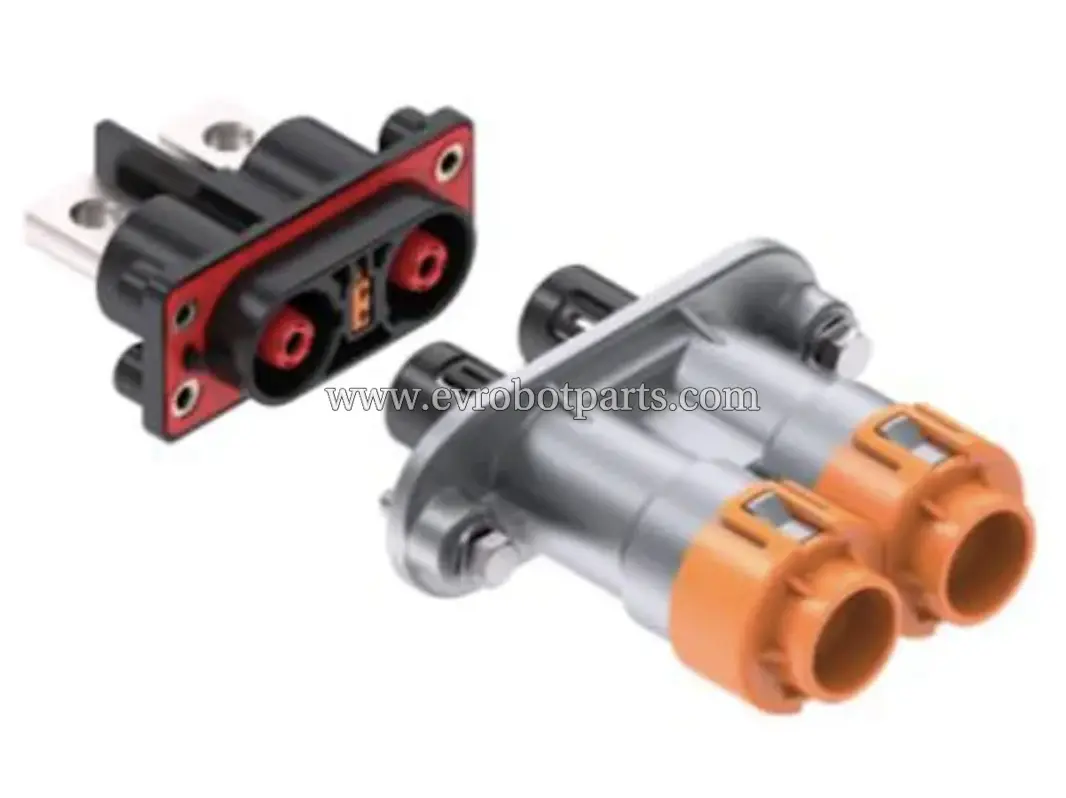

Yonggui YGC1033B-EV-S2PN/I B-Type Straight Plug
B-type housing 180° straight plug for ISO19642 standard 50mm² shielded cables in EV power systems. Rated at 200A and 1000V with YG1033B aluminum alloy housing, 360° EMI shielding, and IP67/IP6K9K/IP68 protection.
Key Specifications
Rated Current: 200A@50mm² shielded cable (ISO19642)
Rated Voltage: 1000V (power) / 24V (signal)
IP Rating: IP67 & IP6K9K & IP68 (mating)
Cable: 50mm² ISO19642 shielded (Φ14.9±0.3mm)
Housing: YG1033B aluminum alloy, PA66-GF30
Operating Temperature: -40C to +125C
Flame Rating: UL94 V-0
Detailed Description
The Yonggui YGC1033B-EV-S2PN/I is a B-type straight plug in the YGC1033 Series Electrical Connectors. The technical specification identifies the YGC1033 series as a dual-pin shielded connector family designed for high-voltage and high-current electrical connection requirements. The series is characterized by a compact structure, high power capability, and a straightforward connector design. It is mainly intended for electronic control and battery power systems in new energy vehicles. The YGC1033B-EV-S2PN/I is specifically listed as a 180° straight plug configuration, with material number 112010105165.
YGC1033B Straight Plug Configuration
The YGC1033B-EV-S2PN/I belongs to the B-type straight plug configuration with a 180° cable outlet. In the YGC1033 ordering information, it is listed separately from the YGC1033A straight, angled, and YGC1033D right-angle configurations. The technical specification gives the material number for the YGC1033B-EV-S2PN/I as 112010105165. Unlike some other YGC1033 configurations shown in the document, the B-type version is listed as a dedicated straight plug configuration rather than as part of a combined 120° or 90° plug assembly option.
The YGC1033B configuration uses a 50 mm² shielded cable arrangement. The technical specification associates the B-type straight plug components with a 50 mm² shielded cable conforming to ISO19642, with a specified cable outside diameter of Φ14.9 ±0.3 mm. The listed components include the YG1033A socket assembly for 10–50 mm² cable, the YG1033A plug shielding outer sleeve for 50 mm² LV216 applications, the YG1033B plug shielding inner sleeve, the YG1033B plug cable seal 50B, and the YG1033B plug rear cover-50B. Each of these listed components has a quantity of two in the corresponding component configuration.
Shielding and Connector Construction
The YGC1033 series is designed as a shielded connector system. According to the technical specification, the plug housing is made from ADC12 material and uses an aluminum-alloy passivation process. The design provides 360° shielding and is specified for high salt-spray resistance. This construction is part of the series design intended for high-voltage and high-current applications in new energy vehicle electrical systems. The specification separately identifies the receptacle shell as PA66-GF30 in black, while the plug housing is specified as ADC12.
The connector system also provides environmental protection when the plug and receptacle are properly mated and locked. The technical data specifies IP67, IP6K9K, and IP68 protection in the mating configuration. The IP68 condition is specified for immersion at a water depth of 1 meter for 24 hours. When the receptacle is mated with its dust cover, the specified protection rating is IP3X. The plug and receptacle themselves meet the IPXXB requirement before normal mating and locking.
Electrical Characteristics
The YGC1033 series provides separate power and signal electrical specifications. The rated current depends on the compatible cable configuration. The technical specification gives 150 A for 35 mm² shielded cable and 200 A for 50 mm² shielded cable. For 0.5 mm² or 0.75 mm² unshielded cable, the specified rated current is 3 A. For the power circuit, the rated voltage is 1000 V, while the signal circuit is rated at 24 V.
The specified withstand voltage is 3000 V for the power circuit and 1000 V for the signal circuit under normal 50 Hz AC conditions. The specified leakage current is no more than 5 mA. The document also gives insulation resistance values of at least 5000 MΩ for the power circuit and at least 1000 MΩ for the signal circuit under normal operating conditions. An HVIL function is available as an optional feature. These electrical parameters form part of the general YGC1033 series specification and should be considered together with the selected cable and mating components.
Mechanical and Environmental Characteristics
The specified mechanical life of the YGC1033 connector series is 50 mating cycles. The operating temperature range is -40°C to +125°C, while the specified relative humidity is no more than 90% at 40°C. The connector system has a UL94 V-0 flame-retardant rating. These environmental specifications define the conditions provided by the technical specification for the connector family and are applicable to system design and component selection.
The plug housing is specified as ADC12 and is associated with neutral salt-spray testing of 96 hours, with the technical document also referencing 240-hour, 480-hour, and 960-hour test levels. The receptacle shell uses black PA66-GF30. Together with the shielded construction and passivation treatment of the plug housing, these material and environmental characteristics are intended to support the connector's specified application conditions.
Cable and Component Configuration
For the YGC1033B 180° plug configuration, the technical specification identifies the compatible cable as a 50 mm² shielded cable based on ISO19642, with a cable outside diameter of Φ14.9 ±0.3 mm. The corresponding component set includes the YG1033A socket assembly Φ10-50 mm² in silver, component code 113020601608; YG1033A plug shielding outer sleeve-50 (LV216), component code 114022600333; YG1033B plug shielding inner sleeve-50B, component code 114029801762; YG1033B plug cable seal 50B, component code 114050501512; and YG1033B plug rear cover-50B, component code 114069804838. Each component is specified with a quantity of two.
The document notes that certain plug and connector components must be selected and purchased separately according to the wiring specification and compatible cable. Therefore, the YGC1033B-EV-S2PN/I model should be considered together with the applicable cable, shielding components, seals, rear cover, and terminal components when preparing a complete cable assembly. The technical specification provides the component codes to support this selection process.
Dimensions and Installation Information
The technical specification includes dedicated drawings for the YGC1033B straight plug, together with the corresponding mounting dimensions. The document separately presents the plug outline dimensions for YGC1033A, YGC1033B, and YGC1033D configurations, followed by receptacle dimensions and mounting-hole information. A dedicated section provides the mounting dimensions for the YGC1033B configuration. The specification also includes mistake-proof key-position diagrams covering the plug, receptacle, and mounting arrangements.
The key-position information is provided for configurations designated I, II, and III. The purpose of these diagrams is to define the corresponding connector keying and mounting arrangements shown in the technical documentation. The dimensional drawings should be consulted directly when designing a panel, housing, cable assembly, or mating interface around the YGC1033B connector.
Storage and Terminal Protection
The technical specification provides specific storage and transportation requirements for YGC1033 series components. Components should be stored separately and kept clean, tidy, and in a well-ventilated environment. The storage temperature should be maintained between 5°C and 30°C, with humidity controlled at no more than 60%. During packaging, transportation, transfer, production, and assembly, terminals should be protected against collision, corrosive gases and liquids, and direct contact by hand. These precautions are specified to help maintain the condition of the terminal contact surfaces.
Technical Documentation Scope
The YGC1033 Technical Specification A0 provides ordering information, compatible cable and component configurations, electrical and mechanical characteristics, environmental requirements, material information, salt-spray testing references, dimensional drawings, mounting dimensions, mistake-proof key-position information, and storage and transportation requirements. For the YGC1033B-EV-S2PN/I, the most relevant configuration information concerns the 180° cable outlet, 50 mm² ISO19642 shielded cable, associated B-type shielding and sealing components, and the series-level electrical and environmental requirements. The manufacturer's technical specification should be consulted for final connector selection, cable assembly configuration, dimensions, and installation details.
Frequently Asked Questions
What is the difference between A-type and B-type housing?
The B-type housing (YG1033B) has a different aluminum alloy housing profile designed specifically for ISO19642 standard 50mm² shielded cables (Φ14.9±0.3mm), while A-type supports both 35mm² and 50mm² cables with different seal inserts.
What cable standard does this connector follow?
The B-type plug is designed for ISO19642 standard 50mm² shielded cables with 14.9±0.3mm outer diameter. This ensures compatibility with EV high voltage cables from major cable manufacturers.
Can this connector be used for 35mm² cable?
No, the B-type housing is specifically designed for 50mm² shielded cable only. For 35mm² cable applications, use the A-type housing (YGC1033A) which supports both 35mm² and 50mm² with appropriate seal inserts.
What is the rated current for 50mm² cable?
Rated current is 200A continuous at 50mm² shielded cable in 40°C ambient. Derating applies at higher ambient temperatures per IEC 60529. Peak current capability is higher for short-duration overload conditions.
