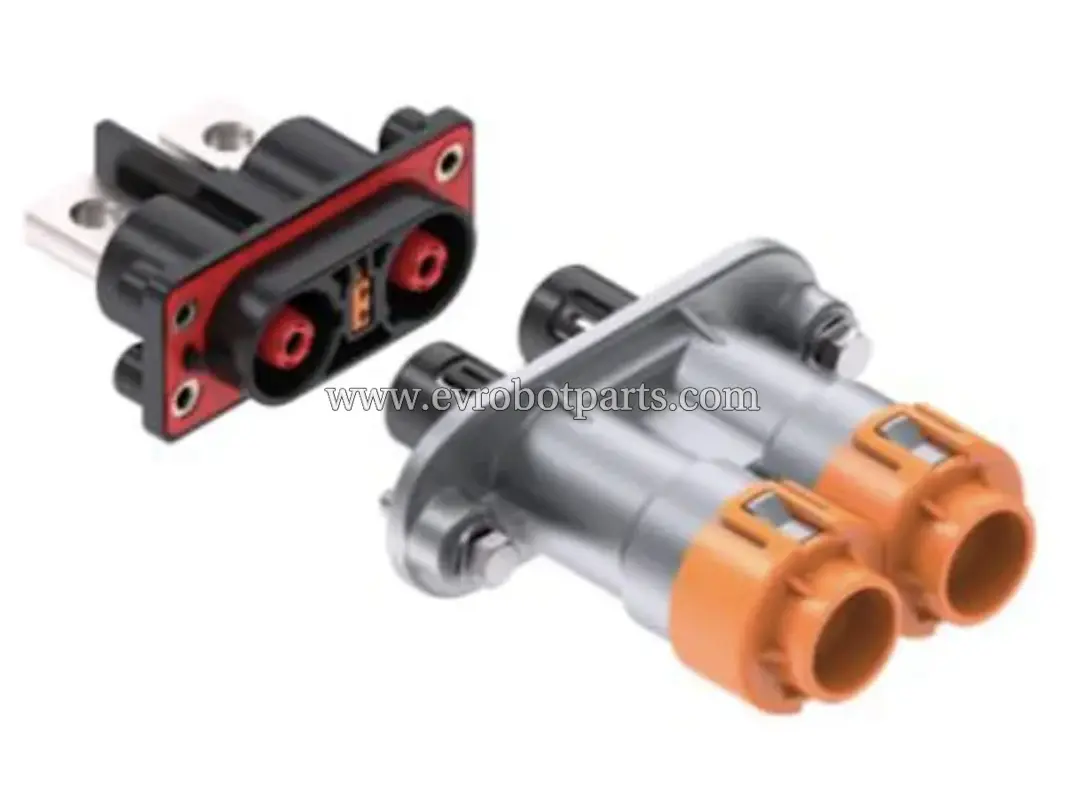

Yonggui YGC1033A-EV-S2PN/I N-Variant Straight Plug
N-variant 180° straight plug assembly for shielded cable connections in EV power systems. Supports 35mm² and 50mm² shielded cables with 360° EMI shielding, aluminum alloy housing, IP67/IP6K9K protection, and 1000V rated voltage.
Key Specifications
Rated Current: 150A@35mm² / 200A@50mm² shielded cable Rated Voltage: 1000V (power) / 24V (signal) IP Rating: IP67 & IP6K9K & IP68 (mating) Temperature: -40°C to +125°C Housing: YG1033A aluminum alloy, PA66-GF30
Detailed Description
The YGC1033A-EV-S2PN/I is an N-variant 180° straight plug assembly from Yonggui Electric, designed for high-voltage and high-current applications in new energy vehicles. This connector features dual-pin shielded design with compact size and high power density.
Key Features:
- N-variant design with modified structural details
- 180° straight cable outlet for direct routing
- 360° electromagnetic shielding with aluminum alloy housing
- Supports 35mm2 and 50mm2 shielded cables
- IP67, IP6K9K, and IP68 protection in mating state
- UL94 V-0 flame retardant rating
- Operating temperature: -40C to +125C
The plug housing is made of ADC12 aluminum alloy with passivation process, providing 360 degree shielding and meeting high salt spray resistance requirements. Some plug components need to be ordered separately according to wiring specifications.
Frequently Asked Questions
What does N-variant mean?
N-variant indicates a specific configuration of the YGC1033A series with modified contact or housing details for particular OEM requirements. Verify the N-variant specification matches your vehicle design before ordering.
What is the cable entry angle?
The S2PN designation indicates 180° straight cable entry, where the cable exits directly opposite the mating face. Suitable for installations with straight cable routing space.
What shielded cable specifications are supported?
Supports 35mm² shielded cable (150A rated) and 50mm² shielded cable (200A rated) per ISO19642 standard. Cable outer diameter must match the connector seal range for IP67 rating.
