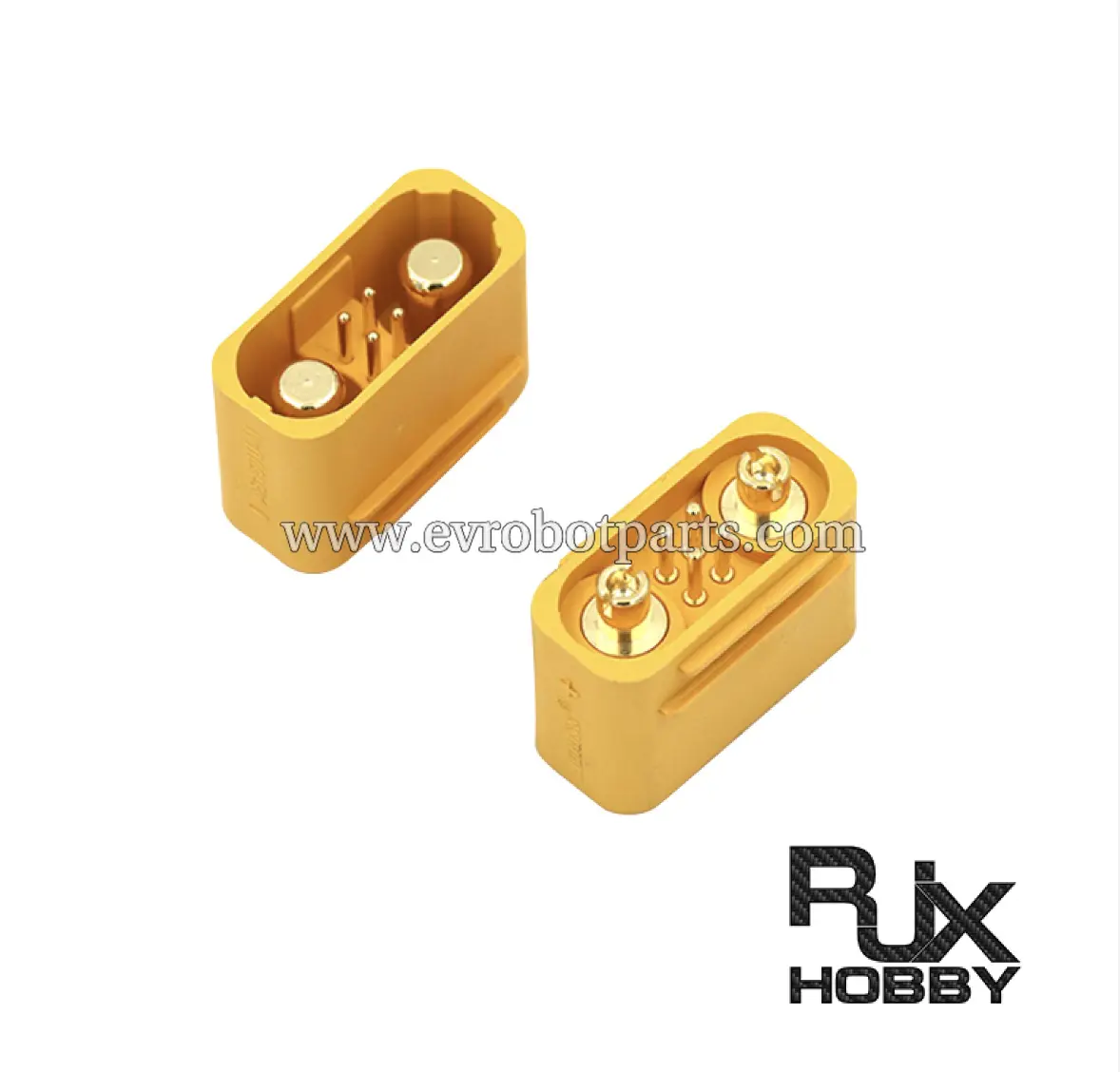

RJXHOBBY RJX3449 AS150UPB-M Male Connector
The RJXHOBBY RJX3449 features the AMASS AS150UPB-M male connector with high current rating and integrated signal pin. Designed for RC aircraft, FPV drones, and UAV power systems requiring reliable high-current battery-to-ESC connections.
Key Specifications
Brand: RJXHOBBY
Model: RJX3449
Connector Type: AMASS AS150UPB-M Male Connector
Current Rating: High Current
Mounting Type: PCB / Plate Mount
Signal Pin: Integrated
Applications: RC Aircraft, FPV Drones, UAV Power Systems
Package: 2 PCS
Detailed Description

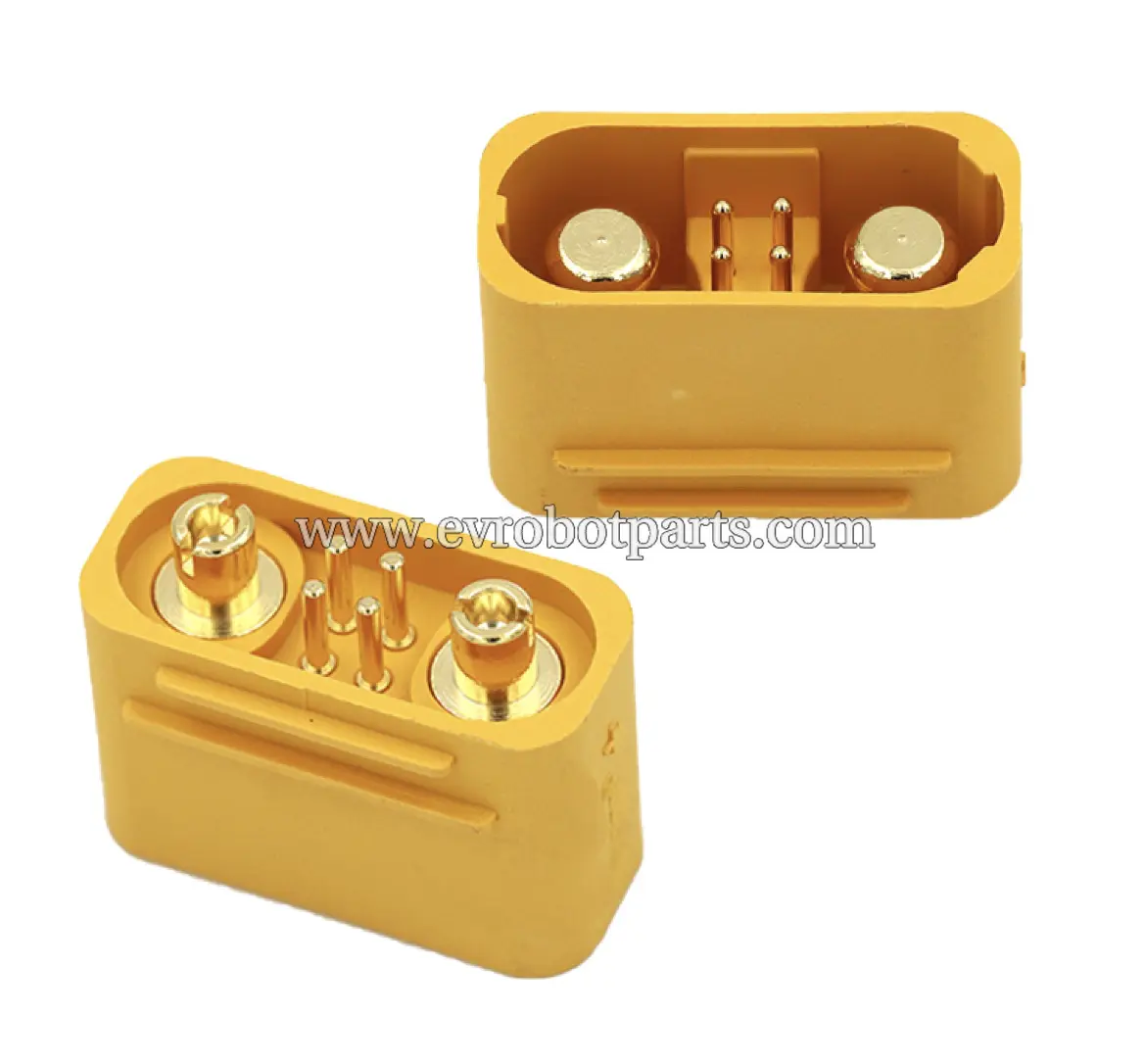

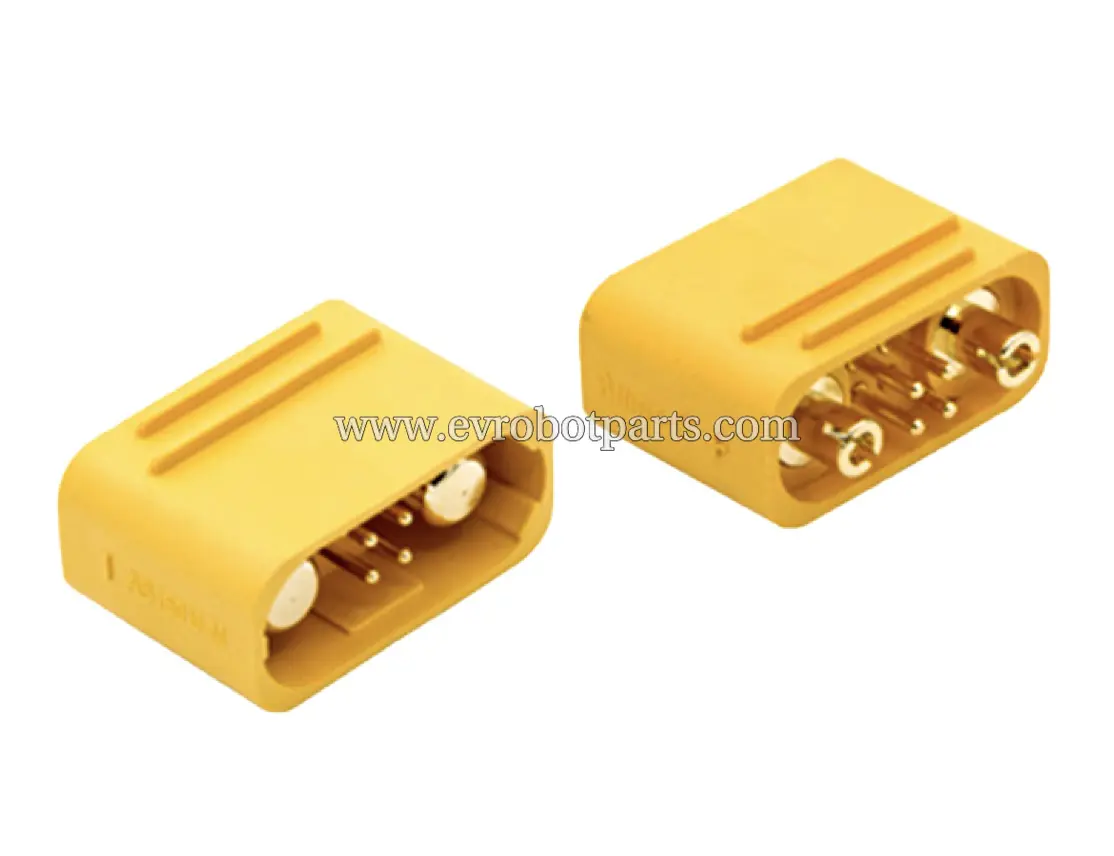

RJXHOBBY RJX3449 Amass AS150UPB-M Male Plug is a high-current plate-type connector designed for RC aircraft, FPV drones, UAV systems, electric vehicles, and other applications requiring reliable DC power connections. This connector adopts the Amass AS150UPB-M structure with a main power contact and signal pin design, providing stable current transmission, low contact resistance, and convenient PCB installation. It is especially suitable for battery power systems, electronic speed controllers (ESC), power distribution boards, and high-performance RC models. :contentReference[oaicite:0]{index=0}
High Current Power Connection for RC and UAV Applications
Modern RC aircraft, FPV drones, agricultural drones, and robotic platforms require connectors that can handle high instantaneous current while maintaining low energy loss. The RJXHOBBY RJX3449 Amass AS150UPB-M Male Plug is engineered for high-current DC power applications, supporting a rated current of 70A and an instantaneous current capability of 140A. The optimized contact structure helps reduce electrical resistance and heat generation during operation, improving overall system efficiency and reliability. :contentReference[oaicite:1]{index=1}
Compared with conventional cable connectors, the plate-type PCB mounting design allows direct integration into power boards, battery systems, and custom electronic assemblies. This makes it an excellent choice for professional drone builders, RC enthusiasts, and engineers developing high-power electric platforms.
Low Resistance Design with Signal Pin Integration

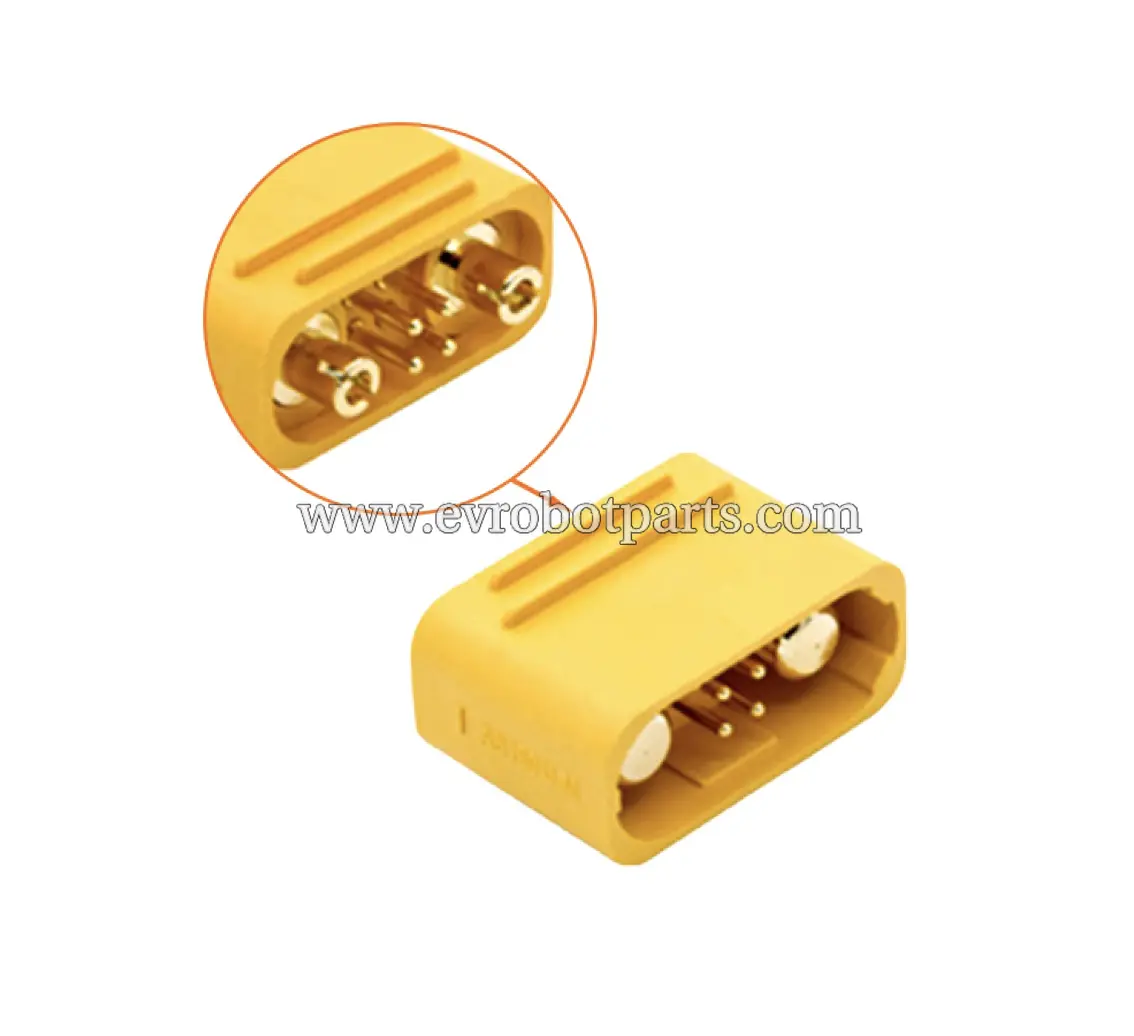

The AS150UPB-M connector features a hybrid power and signal pin configuration. The main power contact is designed for high-current transmission, while the additional signal pin can be used for monitoring, control, detection, or communication functions between connected devices. This design provides greater flexibility for intelligent power systems where battery status monitoring or electronic control feedback is required. :contentReference[oaicite:2]{index=2}
With a contact resistance of approximately 0.40mΩ, the connector minimizes power loss and voltage drop during high-load operation. The low-resistance contact system helps maintain stable electrical performance, especially in applications such as FPV racing drones, heavy-lift UAVs, electric robotics, and battery-powered equipment. :contentReference[oaicite:3]{index=3}
Durable Materials and Reliable Electrical Performance
RJXHOBBY RJX3449 uses high-quality brass gold-plated metal contacts combined with PA66 flame-retardant housing material. The gold-plated contact surface provides excellent conductivity and corrosion resistance, helping maintain consistent performance over repeated connection cycles. The PA66 housing with UL94 V0 flame retardant rating provides improved safety and mechanical durability in demanding environments. :contentReference[oaicite:4]{index=4}
The connector is designed to withstand the vibration, temperature changes, and mechanical stress commonly found in RC aircraft and drone applications. Its robust construction makes it suitable for professional-grade equipment where reliable power delivery is critical.
Designed for Battery and Power System Integration
The RJX3449 Amass AS150UPB-M Male Plug is recommended for battery connection applications, including lithium battery packs, power distribution systems, controllers, and electronic speed controllers. Its compact PCB mounting structure helps simplify wiring layouts and reduce installation complexity in custom builds. :contentReference[oaicite:5]{index=5}
For FPV drone builders, this connector provides a dependable solution for connecting high-capacity LiPo batteries to flight controllers, power modules, and ESC systems. For industrial drone and robotic applications, the connector supports stable power transfer in systems requiring high current output and compact mechanical integration.
Applications
- FPV racing drones and professional UAV platforms
- Agricultural drones and industrial unmanned aerial vehicles
- RC aircraft, helicopters, and high-power models
- Electric vehicle and robotic power systems
- Lithium battery packs and battery management systems
- Electronic speed controllers (ESC)
- Power distribution boards and custom PCB assemblies
- High-current DC power connection systems
Key Features
- Original Amass AS150UPB-M male connector design
- Plate-type PCB mounting structure for easy integration
- High current capability with 70A rated current and 140A instantaneous current
- Low contact resistance for efficient power transmission
- Integrated signal pin for monitoring and control applications
- Gold-plated brass contacts for conductivity and corrosion resistance
- PA66 flame-retardant housing with UL94 V0 rating
- Suitable for batteries, drones, RC models, robots, and electric systems

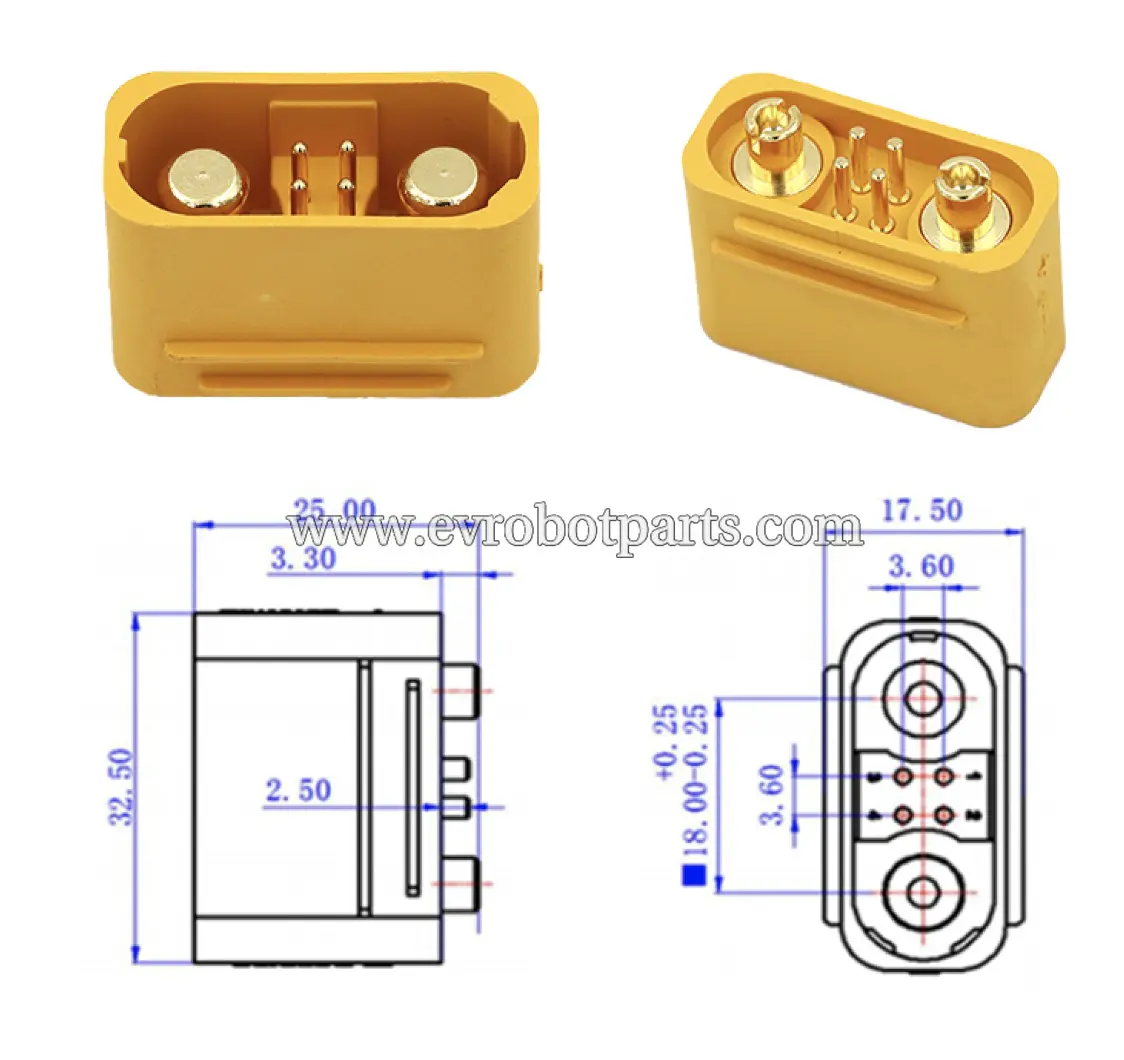

Specifications
| Brand | RJXHOBBY |
| Model | RJX3449 |
| Connector Type | Amass AS150UPB-M Male Plug |
| Connector Style | Plate Type PCB Connector |
| Metal Material | Brass Gold Plated |
| Housing Material | PA66 Flame Retardant Material |
| Rated Current | 70A |
| Instantaneous Current | 140A |
| Contact Resistance | 0.40mΩ |
| Rated Voltage | < DC 50V |
| Signal Pin | Included |
| Flame Retardant Rating | UL94 V0 |
Package Includes
- 2 × RJXHOBBY Amass AS150UPB-M Male Plug Connector
Why Choose RJXHOBBY RJX3449?
The RJXHOBBY RJX3449 Amass AS150UPB-M Male Plug combines high-current capability, low electrical resistance, durable materials, and compact PCB installation. It provides a professional-grade connection solution for users who need dependable power transmission in drones, robotics, electric vehicles, and advanced RC systems.
Whether used for a custom FPV drone build, industrial UAV platform, robotic power module, or high-performance battery system, this connector delivers stable electrical performance and reliable mechanical strength for demanding applications.
Frequently Asked Questions
What current rating does the AS150UPB-M support?
The AMASS AS150UPB-M connector supports continuous current up to 150A with proper wire gauge, making it suitable for high-power drone and RC applications using 6S-12S LiPo batteries.
What is the integrated signal pin for?
The signal pin provides battery voltage or temperature sensing feedback to the flight controller or ESC, enabling real-time battery monitoring without separate balance lead connection.
What wire gauge should I use?
For 150A continuous current, use 8AWG silicone wire. For 100A applications, 10AWG is sufficient. Ensure proper wire gauge to minimize voltage drop and heating at the connector.
Is there a matching female connector?
Yes, the AS150UPB-F female connector is the matching receptacle. We supply both male and female connectors and pre-assembled cable sets for common drone power configurations.
Can this replace XT90 connectors?
Yes, the AS150UPB offers higher current capacity (150A vs 90A) and lower contact resistance than XT90, making it a superior upgrade for high-power drone builds above 6S.
